ArmorFoam 2024
Open Cell Spray Foam DENSITY 1
group 616 66f767b2ce6e9

Application Method

group 617 66f767af452bd

Typical Packaging

.5 lb Open Cell foam

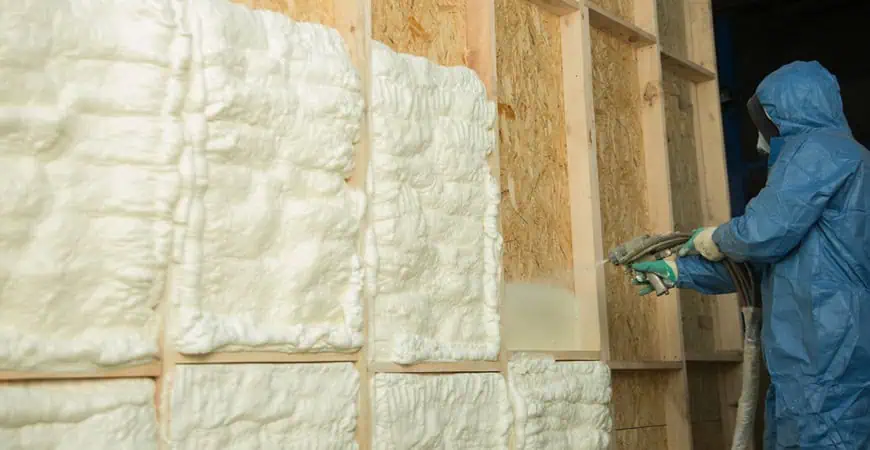

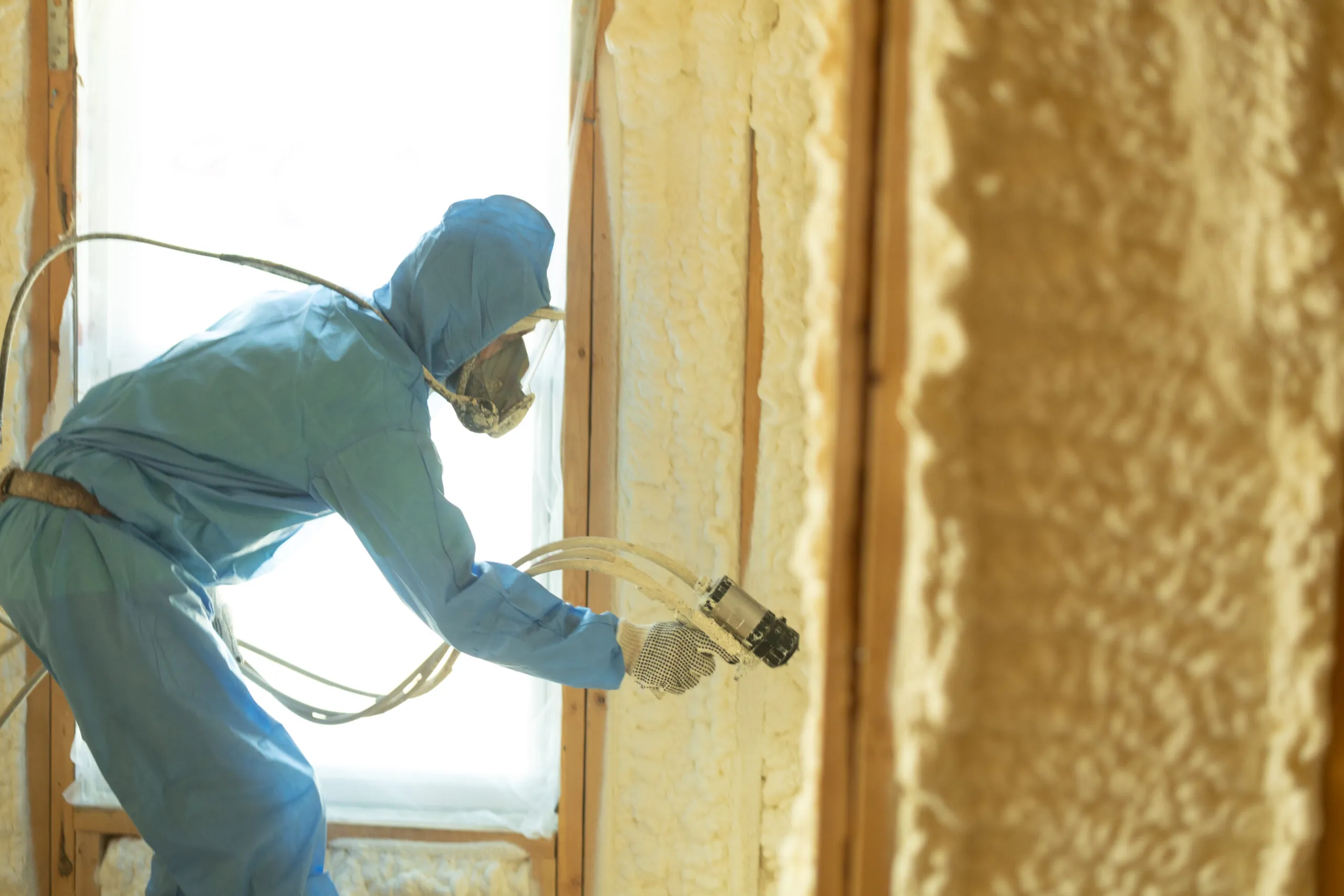

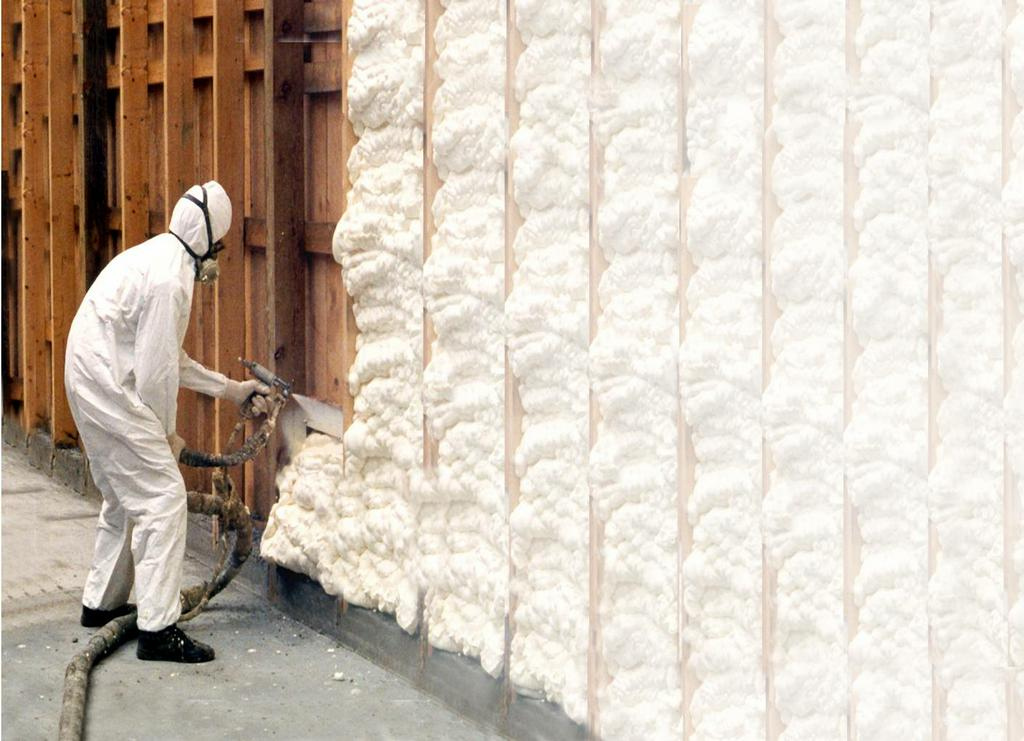

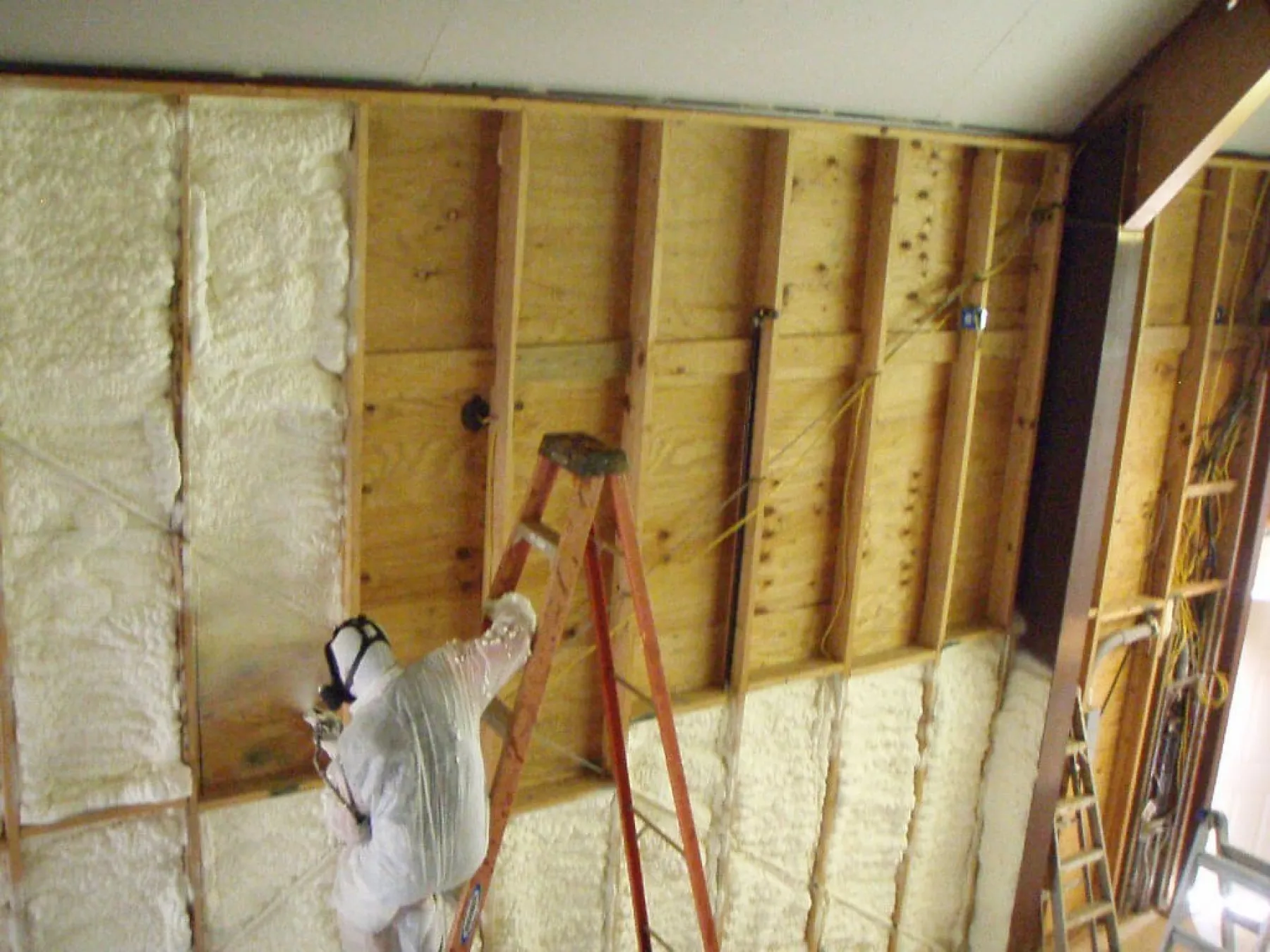

ArmorFoam 0.5 is a two component, water blown (zero ozone depleting chemical) light density, open cell spray polyurethane foam insulation that is designed to improve the performance of the building envelope for commercial, residential and industrial applications. When installed, it expands and seals voids, gaps and crevices. Ideal fit to help fill cavities of any shape, providing an air barrier to reduce air leakage, and a higher R-value than other insulating materials, resulting in increased energy savings and comfort.

ArmorFoam is a fast set, closed cell polyurethane spray insulation system. It is a premium polyurethane product made with raw materials that are made from recycled polymeric materials, along with petroleum ingredients and renewable soy oils. ArmorFoam provides high compressive strengths and R values. It is easy to apply and its fast reaction time allows the applicator to complete difficult jobs quickly.

ArmorThane sts topcoat

More Details

Properties as Specified:

Specific Gravity @ 77 F (25 C) :  A Side: 1.24 ±0.1 B Side: 1.13 ±-/1

Viscosity (Brookfield csp) @ 77 F (25 C):    A Side: 200 ±30  B Side: 360 ±100

Properties as Cured:

Core Density: A Side: ASTM D-1622 B Side: 0.5 pcf ± 0.05

Tensile Strength: A Side: ASTM D-1623 B Side: 3.35 psi

R-value @ 1”:  A Side: ASTM C-518 B Side: 3.9

R-value @ 3.5”: Side A: ASTM C-518 Side B: 13.6
